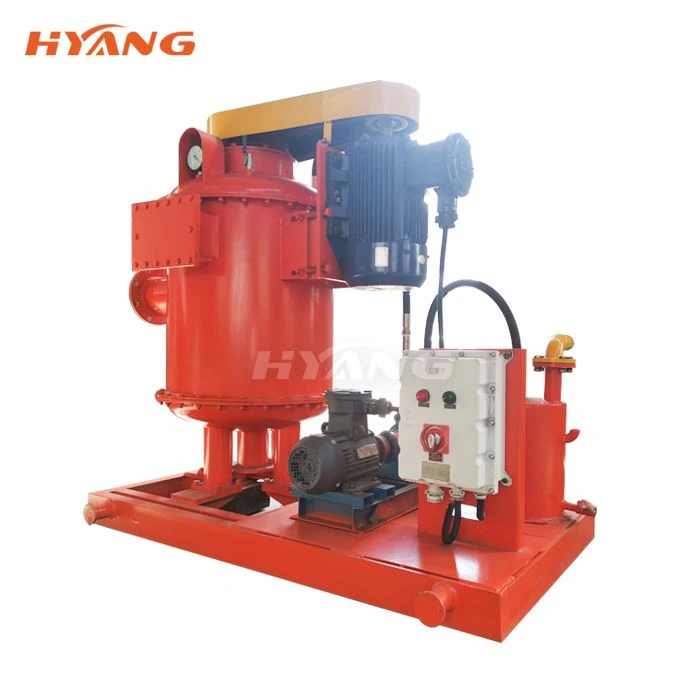

Vacuum Degasser in Drilling
Vacuum degasser in drilling is special equipment used to process gas-immersed drilling fluid, which plays an important role in restoring the specific gravity of the mud, stabilizing the viscosity performance of the mud, and reducing the cost of drilling. At the same time, it can also be used as a high-power agitator.
Model: HYZCQ240,HYZCQ270,HYZCQ300,HYZCQ360
Brand: HYang, or OEM
Color: Orange, Blue or customized
Degassing efficiency:more than and equal 95%
Treatment capacity: 240~360m3/h (1056~1584gpm)
Vacuum degasser in drilling is special equipment used to process gas-immersed drilling fluid, which plays an important role in restoring the specific gravity of the mud, stabilizing the viscosity performance of the mud, and reducing the cost of drilling. At the same time, it can also be used as a high-power agitator.
HYZCQ series vacuum degasser in drilling usually installed after the drilling fluid shale shaker， can effectively separate harmful gases in the drilling fluid mud, while maintaining the specific gravity of the mud, and protecting the sand pump and mud pump to improve the performance of subsequent equipment. Treatment effect. The HYZCQ series vacuum degasser adopts an autonomous slurry suction method, no additional slurry supply pump is required. HYZCQ series vacuum degasser can also play a role similar to a large agitator.
Technical Parameters of HYang Series Vacuum Degasser：
Model | HYZCQ240 | HYZCQ270 | HYZCQ300 | HYZCQ360 |
Main diameter | 700mm | 800mm | 900mm | 1000mm |
Capacity | ≤240 m3/h (1056GPM) | ≤270 m3/h (1188GPM) | ≤300 m3/h (1320GPM) | ≤360 m3/h (1584GPM) |
Vacuum Degree | -0.02~-0.04 Mpa | |||
Handling Efficiency | ≥95% | |||
Main Motor | 15Kw(20HP) | 22Kw (30HP) | 30Kw(40HP) | 37Kw (50HP) |
Vacuum Pump | 2.2Kw(2.9HP) | 3Kw(4HP) | 4Kw(5.3HP) | 7.5Kw (10 HP) |
Rotation Speed | 860RPM | 870RPM | 876RPM | 880RPM |
EX Standard | ExdⅡBt4 / IECEX / ATEX | |||
Suction Line Size | 6 Inch | |||
Output Size | 8 Inch | |||
Weight | 1100kg | 1350kg | 1650kg | 1800kg |
Dimension: L×W×H | 1750×860×1500mm | 2000×1000×1670mm | 2250×1330×1650mm | 2400×1500×1850mm |
