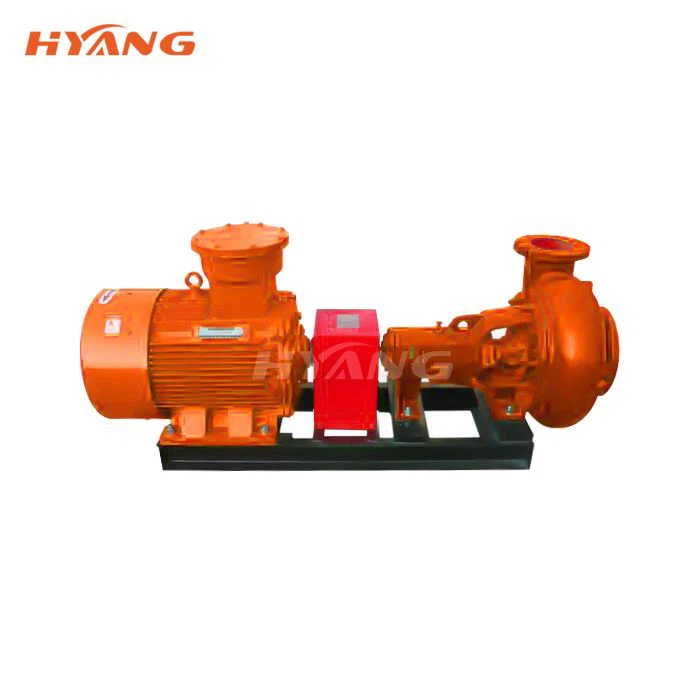

Drilling Centrifugal Pump
Drilling Centrifugal pump is mainly used to transport drilling mud, and can also be used as desander, desilter and decanter centrifuge feeding pump, and also be used as filling pump for supply pump and mud pump. HYANG series centrifugal sand pumps adopts mechanical seals, with long service life and reliable performance.
Centrifugal Pump is the ideal equipment to provide power transmission for desander, desilter, mud cleaner, and jet mud mixer. HYANG chooses high wear-resistant hard alloy for mechanical seal to make sure our equipment corrosion resistance and wear resistance. All the parts are interchangeable with internationally famous brand pumps like the Mission pump, so that users can find the vulnerable parts and replace them more conveniently.
Features and Benefits
1. Adpots alloy cast iron for pump body, longer service life.
2. Precision casting technology greatly reduces the incidence of casting defects.
3. Mechanical seal and asbestos double seal.
4. Famous international brands bearing SKF and FKM oil seals.
Data & Specifications
Model | Flow rate | Lift | Impeller Diameter | Power | Frequency | Ex Standard | Weight | Dimension |
HYSB8×6-14J | 320 m3/h | 40m | 14in | 75kW | 50HZ | ExdIIBt4 / IECEX / A-TEX | 1096kg | 1968×650×1017mm |
HYSB8×6-12J | 12in | 60HZ | ||||||
HYSB8×6-13J | 275 m3/h | 35m | 13in | 55kW | 50HZ | 987kg | 1894×650×957mm | |
HYSB8×6-11J | 11in | 60HZ | ||||||
HYSB6×5-13J | 200 m3/h | 35m | 13in | 45kW | 50HZ | 786kg | 1811×558×858mm | |
HYSB6×5-10J | 10in | 60HZ | ||||||
HYSB6×5-12J | 150 m3/h | 30m | 12in | 37kW | 50HZ | 771kg | 1786×558×858mm | |
HYSB6×5-9J | 9in | 60HZ | ||||||
HYSB5×4-13J | 120 m3/h | 35m | 13in | 30kW | 50HZ | 696kg | 1696×568×805mm | |
HYSB5×4-11J | 11in | 60HZ | ||||||
HYSB5×4-12J | 90 m3/h | 30m | 12in | 22kW | 50HZ | 583kg | 1648×568×800mm | |
HYSB5×4-10J | 10in | 60HZ | ||||||
HYSB4×3-13J | 65 m3/h | 35m | 13in | 18.5kW | 50HZ | 561kg | 1595×505×800mm | |
HYSB4×3-12J | 12in | 60HZ | ||||||
HYSB4×3-12J | 55 m3/h | 28m | 12in | 15kW | 50HZ | 482kg | 1550×505×755mm | |
HYSB4×3-10J | 10in | 60HZ | ||||||
HYSB4×3-11J | 45 m3/h | 25m | 11in | 11kW | 50HZ | 464kg | 1510×505×755mm | |
HYSB4×3-9.5J | 9.5in | 60HZ | ||||||
HYSB3×2-10J | 30 m3/h | 20m | 10in | 7.5kW | 50HZ | 380kg | 1398×490×717mm | |
HYSB3×2-9J | 9in | 60HZ |
