Drill Cuttings Management
Drill cuttings refer to the formation cuttings that are damaged by the drill bit during the drilling process and brought to the ground through the mud circulation system. It is the main waste in the drilling process, and its production is accompanied by waste drilling fluid. Drilling cuttings management is necessary because the hydrocarbons contained in sludge and drill cuttings are extremely harmful to the environment.

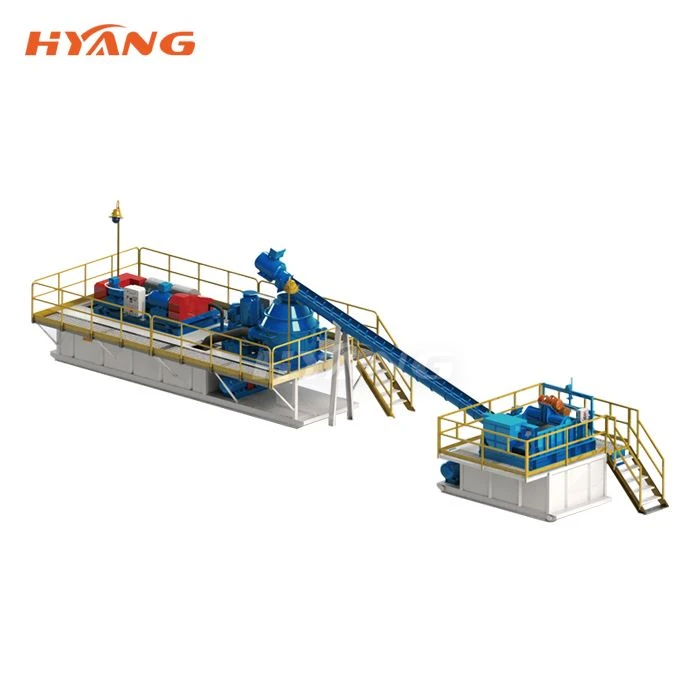

HYang oil-based mud drilling cuttings management system is mainly composed of a drying machine, centrifuge, screw conveyor, collection tank, drying vibrating screen, integrated machine, drilling fluid recovery equipment, etc. After systematic treatment, the useful oil-based mud can be recycled, and at the same time, it can effectively reduce the moisture content of the solid phase, realize the reduction of waste, and save energy in subsequent incineration.
Advantages and Features
1. The complete set of sludge treatment equipment developed by our company has successfully solved the problem of a large amount of oil sludge accumulated in oil fields and difficult to recover according to the special physical and chemical properties of sludge and its own characteristics; Milk and separation, forming a complete set of equipment that is easy to automatically control.
2. High degree of automation, the control system is fully automatic controlled by PLC, dynamic picture display, and can adopt the DCS system integration mode, so that the system can realize intelligent automatic operation in operation.
3. The complete set of sewage oil treatment systems can be vehicle-mounted, free movement, high production efficiency, short processing time, fully automatic operation, can separate oil, water, and mud separately, and the recovered crude oil can be re-refined.
4. All equipment is designed as skid-mounted units, which are convenient for hoisting, transportation, and on-site placement.
5. The oil content of the treated drill cuttings is less than 8%, which is convenient for packaging and transportation.
6. The density of the liquid phase after treatment can be reduced to 1.2ɡ/㎝³, which is far lower than 1.35ɡ/㎝³ of ordinary oil-based drilling cuttings processing equipment, and can be directly returned to the mud circulation system for reuse.
