Tunneling Slurry Separation Plant
1. Slurry separation plant for tunneling shield engineering.
2. Treating capacity:120m³/h~500m³/h or customized.
3. Advantages:compact structure, high mud treatment capacity.
4. Modular design for fast movement.

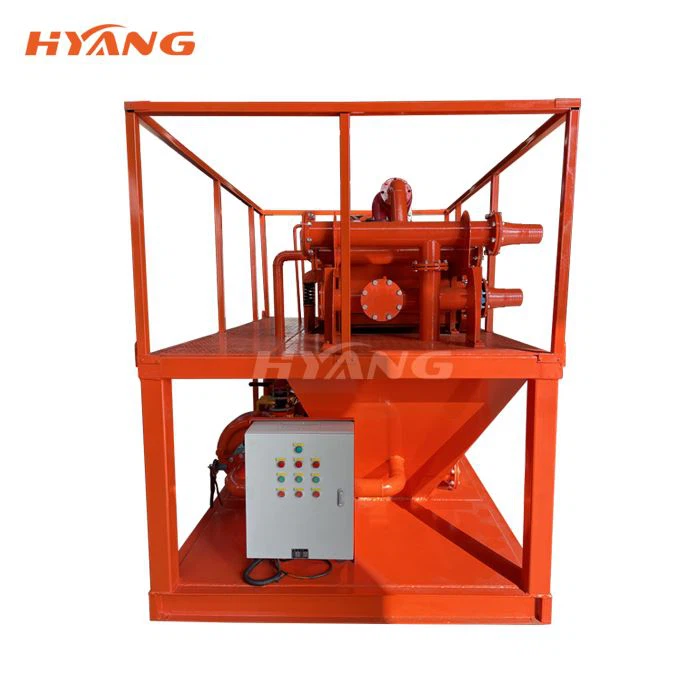

HYANG tunneling slurry separation plant is necessary equipment for foundation construction. It's widely used for tunneling, micro-tunneling, pipe-jacking, bored piles construction, piling construction and diaphragm wall construction projects.
Slurry separation plant is popular for projects of AVN Machines, Mixshields, or Shaft Sinking Machines. Tunneling shield engineering is mostly carried out in extremely complex geological conditions or in loose geological structures. The tunneling operator will have to use the drilling mud to stabilize the drilling surface when digging forward. HYANG chooses our shale shakers, desander, desilter and decanter centrifuges to processes separate and remove the excavated solids from the bentonite suspension-a mixture of water and thixotropic clay, then cleaned fluid is transferred back to the slurry circulation.
Our tunneling slurry separation plant model is available for treating capacity from 120m³/h~500m³/h, and also we can produce slurry plant according to the customer's site requirements for mud processing capacity, which greatly meets the needs of tunneling shield engineering.
Main Characterstics of Hyang Tunneling Slurry Separation Plant
1. Adopts combined design of shale shaker and desander, compact structure and small occupation.
2. Strong processing capacity, able to quickly treat mud particles 15μm~44μm. Recycle and reuse mud and reduce user costs.
3. Adopts wear-resistant materials shaker screen and cyclone with long service life.
4. Recycling mud and reducing the environmental pollution.
Technical Specification of Hyang TBM Desanding Plant
| Single Unit Capacity | |||
| Max.Slurry Capacity | 120m3/h | Total Installed Power | 82.8kW |
| Purification Desanding Separation Size | d50=0.074mm | Max.Water Content of Screen Underflow | 30% |
| Coarse Shale Shaker | HYDGS900 | Power | 2.2KW X 2 |
| Fine Shale Shaker | HYDG700 | Power | 1.94KW X 2 |
| Desander Pump Flow | 120m3/h | Motor Power | 37kW |
| Desilter Pump Flow | 120m3/h | Motor Power | 37kW |
| Desander Hydrocyclone | 12” | Hydrocyclone Qty | 2 pcs |
| Desilter Hydrocyclone | 4” | Hydrocyclone Qty | 8 pcs |
| Dimension(L*W*H) | 6.5m×2.5m×7m | Total Weight | 10t(appr.) |
| Solid Content Less Than | 30% | Max.Proportion of Slurry Treatment Less Than | 1.25g/cm³(±0.1) |
Xi'an Huayang Oil and Gas Equipment Co.,Ltd. is a professional R&D manufacturer of mud cleaning systems. Our system can be widely used in bored piling, oil and gas drilling mud solids control systems, HDD horizontal directional mud recovery systems, subway shield mud recovery systems, river dredging mud recovery systems and so on.
