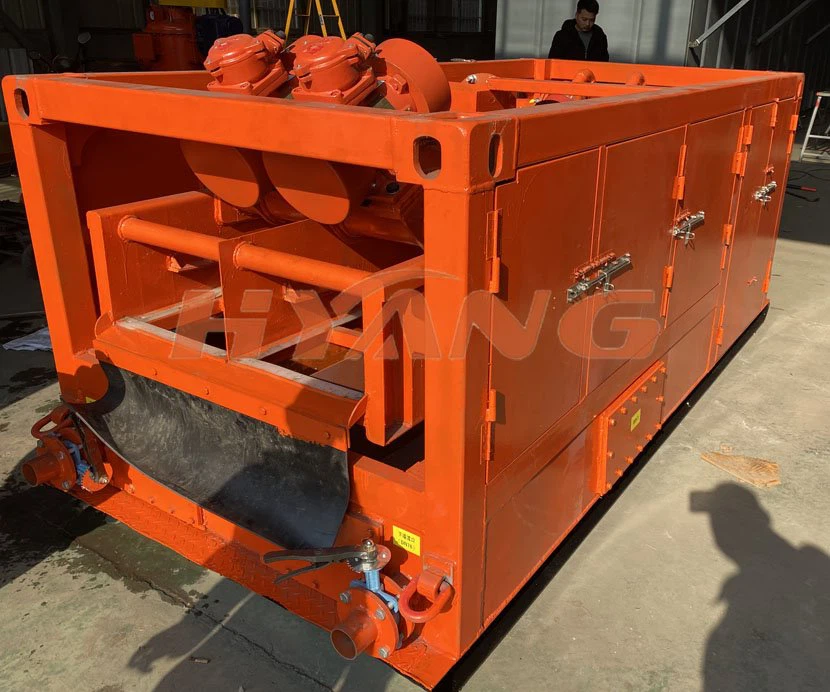

Slurry Separation Plant

Slurry separation plant is a kind of necessary equipment that can effectively solve the reduction treatment of engineering mud. It can be widely used in mud-water separation in construction piling, mud-water separation in pipe jacking construction, mud-water separation in shield tunnel construction, river sludge separation and treatment, tailings mud-water separation, contaminated soil remediation, and other fields.

HYang Oil & Gas is a professional supplier of integrated solutions for mud treatment. HYSP series mud-water separators have been widely used in many fields. Pulling the discharge standard, the mud can be recycled, or the clean liquid can be directly discharged. To sum up, HYang slurry separation plant can be applied in the following 6 major fields:

1. Engineering mud treatment: The engineering mud treatment, piling mud treatment, bored piles, etc. produced in the process of building construction can reduce the amount and facilitate transportation.

2. River and lake dredging sludge treatment: The process of river silt and sludge treatment is also the process of mud-water separation, solid-liquid separation process.

3. Municipal pipe network sludge treatment: subway shield mud treatment, underground diaphragm wall mud water treatment, pipe jacking machine mud treatment, and other fields.

4. Sludge treatment in sewage treatment plants: It can effectively solve the problem of sludge separation in sewage treatment plants.

5. Contaminated soil remediation: In the process of remediation of oily sludge-contaminated soil in chemical plants and oil fields, it is necessary to clean the contaminated soil. After cleaning, a mud-water separator is required to separate the soil to restore the soil properties.

6. Tailings mud water treatment: The mud water separator is also suitable for tailings mud water treatment.

Equipment Composition of HYang Slurry Separation Plant

The slurry separation plant is mainly composed of screening equipment, desanding and desilting cyclone equipment, slurry supply pump, electric control system, etc. According to the geological environment in special areas, filter press equipment and centrifugal equipment can also be added. According to the tonnage of the directional drilling rig, the diameter of the cutter head of the pipe jacking machine, and the shield machine, a suitable mud-water separator can be matched. The specifications and types of mud-water separators are: HYSP180-20 (180m³/h), HYSP250-20 (250m³/h), HYSP360-20 (360m³/h), HYSP500-20 (500m³/h), HYSP1000-20 ( 1000m³/h), HYSP1500-20 (1500m³/h), HYSP3000-20 (3000m³/h), HYSP4000-20 (4000m³/h), HYSP6000-20 (6000m³/h), etc. They are suitable for 2000mm, 2500mm mm, 4200 mm, 6000 mm, 10000 mm, 15000 mm, 15000 mm and other outer diameter pipe jacking machines, shield machines, etc.

Features and Advantages of HYang Slurry Separator

1. The excitation motor is Martin, Oli, or the same high-quality brand motor. The protection grade is IP65, and the excitation force is adjustable.

2. Use the jet nozzle with a small rotation angle to flush the screen, and the "Y" filter is installed on the pulp supply line.

3. The vibrating screen has undergone ANSYS linear analysis, multi-layer, and multi-layer structure design, combined with coarse screen and fine screen to ensure large processing capacity.

4. The screen box angle adjustment device, the adjustment range is -1°~+5°, which can meet the processing requirements of each stage.

5. The screen mesh made of composite polyurethane material is available in multiple models.

6. Select Italian well-known elastic support blocks, the performance is far better than ordinary springs.

7. The hydro cyclone is made of polyurethane composite material and has a segmented assembly structure. Long life cycle and easy maintenance. Efficient mud purification and sand removal and mud removal efficiency are beneficial to control the solid phase content in the mud.

8. The whole system is designed in modular form, which can be used for modular construction and combination, and has strong ductility. In addition, each system is designed according to the size of the international standard container, easy to transport.
